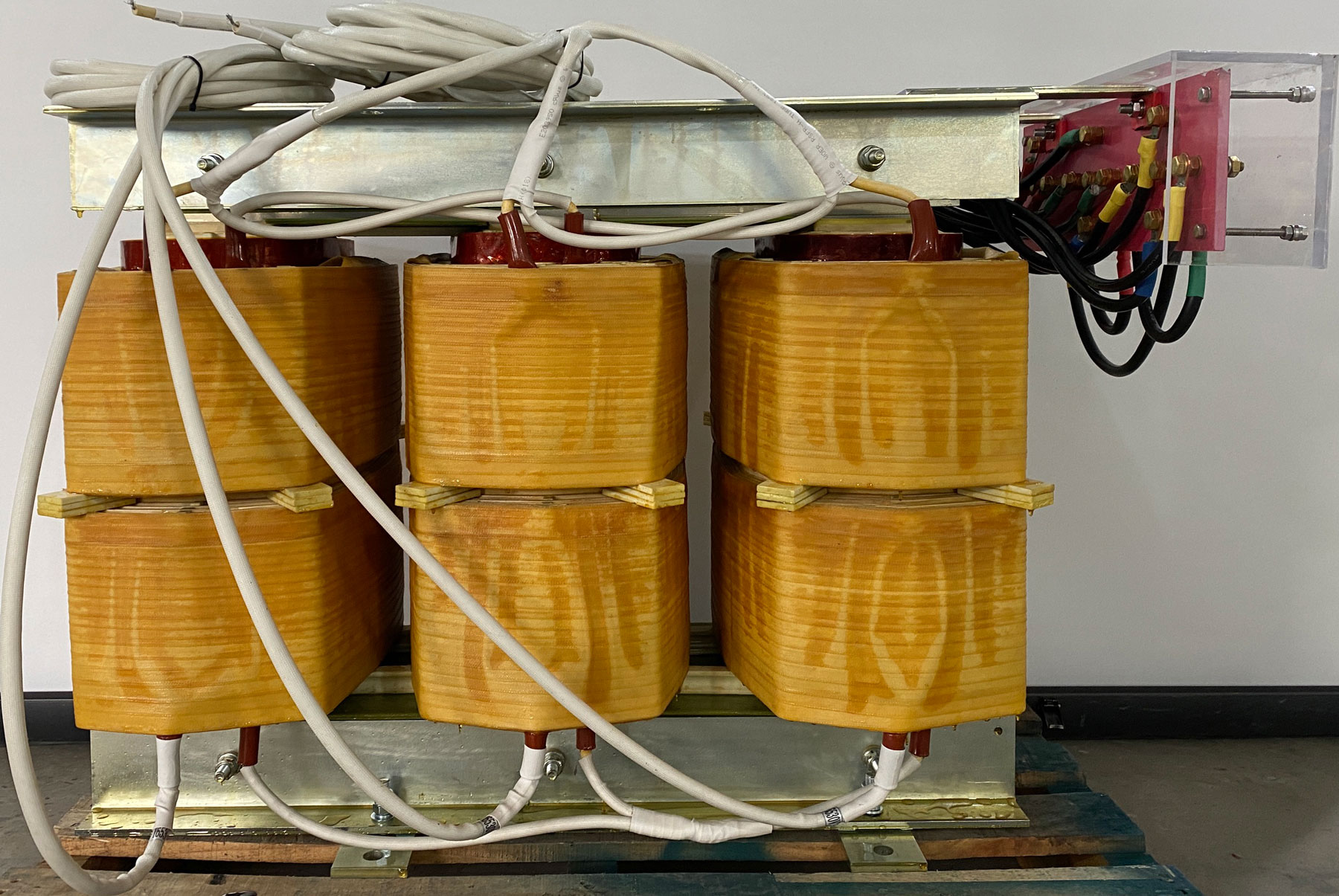

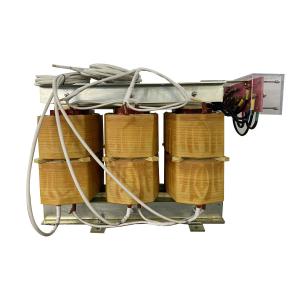

111KVA Three phase Dry type transformer Step up 472VAC To 6530VAC
Summarization
Dry type transformers SG is the use of insulation paper-based insulation system, core and winding transformer. products are composed of the entire life of maintaining excellent electrical performance and mechanical properties, with low loss, low noise, energy saving and environmental protection, high capacity, high reliability, wide range of applications and other advantages. Widely used in local lighting, high-rise buildings, airports, docks, CNC machinery and equipment, mechanical and electronic equipment, medical equipment, rectification devices and other places.
Main data
| Phase | Three |
| Model | SG-111KVA |
| Name | Three-phase Dry type transformer |
| Rated power | 111KVA |
| Input voltage | 470VAC |
| Output voltage | 6500VAC |
| Frequency | 60Hz |
| Insulation class | H |
| Impedance: | 10% |
| Induced withstand voltage | 125Hz/Double voltage/min |
| Grounding resistance | 25A<100mΩ |
| Cooling method | Air cooling |
| Temperature rise | <150℃ |
| Weight | 1100Lbs |
Production process
FAQ
1. Q: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
2. Q: What is the lead time?
A: Sample time 3-7 days, we usually ship by DHL, UPS, FedEx,etc. Mass production time 7-25 days.
3. Q: How long is the warranty?
A: 24 monthes from B/L. If there are any accessory problems,just provide the photos of damaged accessory,then we will provide free service. According to the number of products,we will provide easily damaged accessories for free. we also can provide technical support if you need.
4. Q: Is OEM/ODM available?
A: Yes,it is! We are manufacturer with our own R&D team, we can customize products according to customer's drawing or requirements.
Customized services:
a. Customized color and special function.
b. Customized box.
c. Print customer's logo(MOQ:≥10pcs).
d. Your other ideas about product, we can help you design and put them into production. The above customized services must be confirmed before production.
5. Q: How to control the products quality?
A: Our company owns the core technology ,all kinds of products hold CE certificate. We have professional engineers. Workers are strictly required to make products according to the drawings. Each process has technical instructors.The QC supervisors will regularly inspect the production. We will do products performance tests during production, and comprehensive quality tests when the products is completed.
